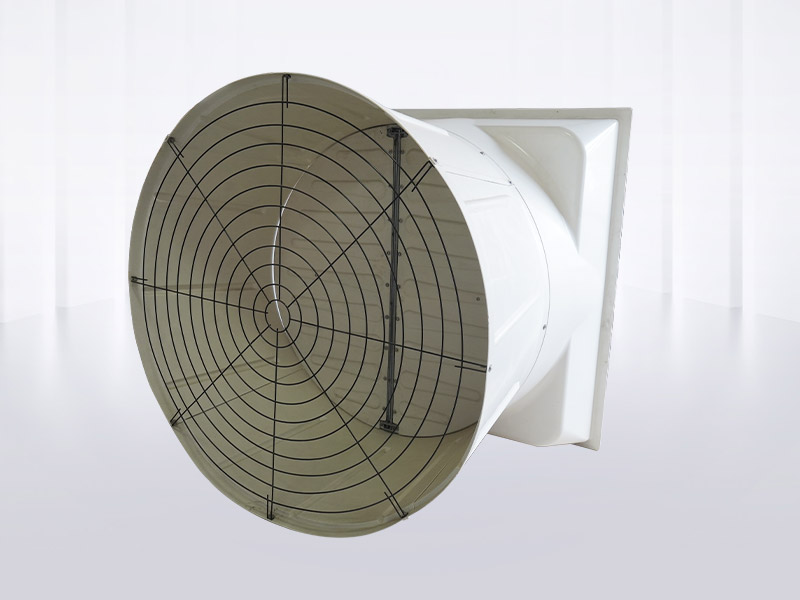

Double-door Cone Fan(Butterfly Cone Fan)

Views:491
Date:2024-06-08
Author:QINGZHOU FEITENG THERMO-CONTROL MACHINERY CO,.LTD

We strive to serve customers, serve the community, and serve everyone is a foothold for our development. We not only provide good products, but also ensure thoughtful services, we have always been dedicated to providing customers with as much added value as possible!

Product Introduction

Using advanced front double door opening device,small wind resistance,good sealing,high efficiency,lengthened cone design improve exhaust power.

Galvanized steel frame is made of 180/㎡ galvanized layer,avoid rust.

Fan double doors closed with the rubber sealing which effectively avoid air backflow when shart fans at different time.Greatly improve the operation efficiency by 15-20% compared with the same power fan.

Fan fan blade is special designed for top grade efficiency which made of Drupp stainless steel by punch forming.Large air volume,no deformation,no broke,no dust,sttactive and durable.Thickness 1.2mm,surface finish BA grade.
