Electric heating heater

Views:629
Date:2024-06-08
Author:QINGZHOU FEITENG THERMO-CONTROL MACHINERY CO,.LTD

We strive to serve customers, serve the community, and serve everyone is a foothold for our development. We not only provide good products, but also ensure thoughtful services, we have always been dedicated to providing customers with as much added value as possible!

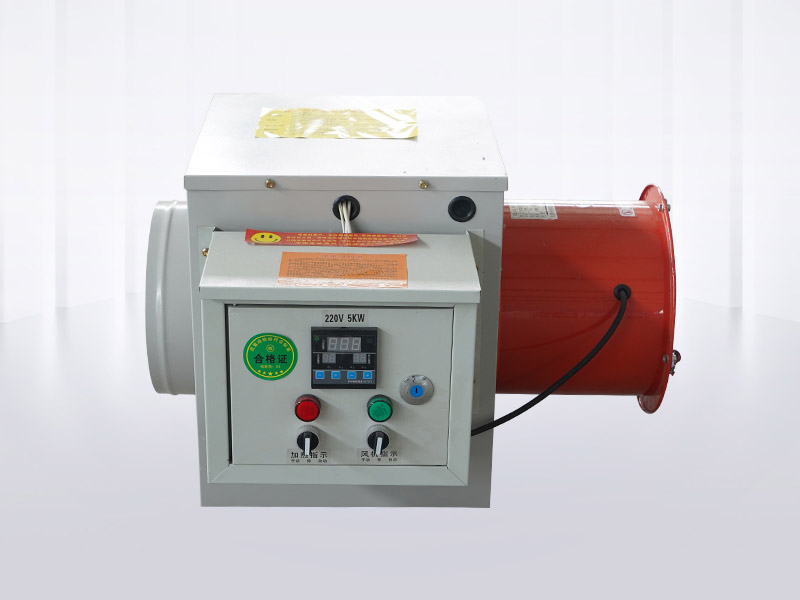

Product Introduction

Electric heating heater is the process of converting electric energy into heat energy. It is a kind of high-quality electric heating equipment, which is used for the heating, heat preservation and heating of the flowing gaseous medium.When the heating medium under the action of pressure, through the electric heater heating using the principle of thermodynamics evenly take away the electric heating elements produced in the work of the huge heat, so that the temperature of the heating medium to meet the user's requirements.

It is heated by the stainless steel electric heating pipe, and then the hot air is transported to the heating space required by the air supply pipe.Equipped with automatic intelligent temperature control system, according to the customer's own needs to set the temperature, automatic intelligent control.

* Automatic constant temperature.

With automatic constant temperature function, after reaching the set temperature, into the constant temperature state, without personnel on duty, safe, stable and reliable

* Electric heat pipe

High quality electric heating tube, fast heating, stainless steel electric heating tube plus heat sink fin, increase heat sink area and fast heating

* Wind turbines

The outer rotor fan with low noise is adopted, and the wind wheel and volute with high performance in hydrodynamics theory ensure the motor running quietly .

More professional production process, bring better warm experience.

modelThermal output power
           (kcal/h)
Heating Power (KW)Max Airflow
           (m3/h)
Normal
           Temperature
           Heating Area(m2)
Hot air heating (℃) Voltage
           (V)
Dimension
           (mm)
30KW25000308700300-60060-120380v/220v1100*1100*1800
50KW400005014000600-80060-120380v/220v1400*1100*1800
80KW650008017400800-100060-120380v/220v1600*1100*1800
120KW100000120200001000-120060-120380v/220v1800*1200*2200

Note:
           1,All electric heating tubes are fin-shaped stainless steel heating tubes.
           2,The outlet temperature is based on the temperature difference of the external environment and is for reference only.
           3,Each heater is equipped with a fully automatic temperature control box.
           4,According to the actual situation of the customer, the fan model can be changed to change the air volume
