Greenhouse Details:
Type: PC greenhouse Size: As customers' requirement
Covering Material: Hollow PC sheet Eaves Height: 4.5m
Span: 8m, 9.6m, 10.8m, 12m Wind Load: 0.45KN//m2
Snow Load: 0.35KN/m2
Specific Description

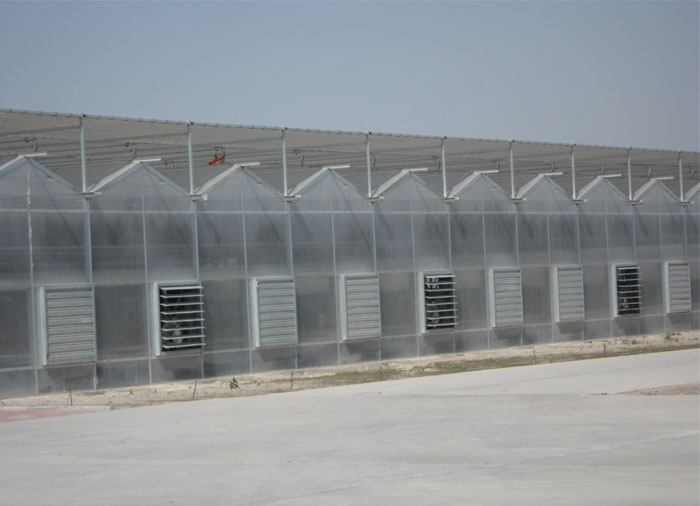

PC greenhouse has the following basic equipments: greenhouse skeleton system, covering system, and ventilation system,etc. It can be applied to the tourism and plant of vegetables and flowers. Besides, it has many advantages.
You can read the following information to know it closely:
Greenhouse
PC Greenhouse
East-West
104m
Span
12m
South-North
96m
Span No.
8
Total Area
9984m2
Span
8m
Span No.
1
Bay
8m
Bay No.
12
Eaves Height
4.5m
Top Height
5.4m
Product
Specification
Polycarbonate Sheet
8mm, Solid
8mm, Hollow
10mm, Solid
10mm, Hollow
The Major Structure of PC Greenhouse:
Product
Specification/mm
Material
Notes
Main Post
100＊120＊3.0
Hot-dip Galvanized
National Standard
Side Post
60＊120＊3.0
Hot-dip Galvanized
National Standard
Beam
40＊60＊2.0
3# Angel Steel
Hot-dip Galvanized
Galvanized After Welding
Surround Pipe
50＊50＊2.0
Hot-dip Galvanized
National Standard
Gutter
Ø2.0
Hot-dip Galvanized
National Standard
Herringbone Beam
30＊50＊1.5
Hot-dip Galvanized
National Standard
Cover Material:
PC sheet as cover material has the following characteristics: light weight, better light-accepting performance, better insulation effect, anti-UV, anti-age, and others.
Merits of PC Greenhouse:
1. Fast installation:
The square of a single PC sheet is up to 2.1m*6m. It's easy to install and hard to be damaged;
2. Good heat preservation:
The heat preservation of hollow PC sheet is better than hollow glass;
3. Light weight:
Its weight is less than 2Kg/m2. And it can reduce the load of the major skeleton, saving steel materials;
4. Bendability:
PC sheet has good flexibility and curving performance. It can be applied to arch greenhouse.
