Reasonable structure,stable running,high effciency.

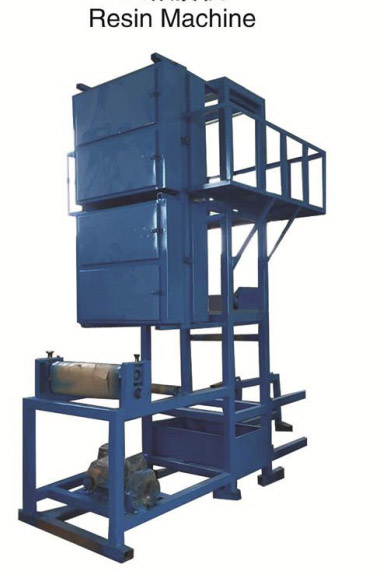

The drying light boxes of resin machine are made of high quality stainless steel,to ensure naver rust under high temperature condition.
The drying light boxes adopt 8 digital control,easy operation,uniform temperature,higher heating efficiency,lower electricity consumption,to improve the quality of cooling pad.
The corrugated machine adopt wear resistant bushing which is made of special materials,withstand high temperatures,longer service life.
Adopt inner circulation heating oven,multi-direction heating,quick temperature rising,high efficiency,lower drying cost.
Widen glue machine,improve working effciency,reduce working intensity.

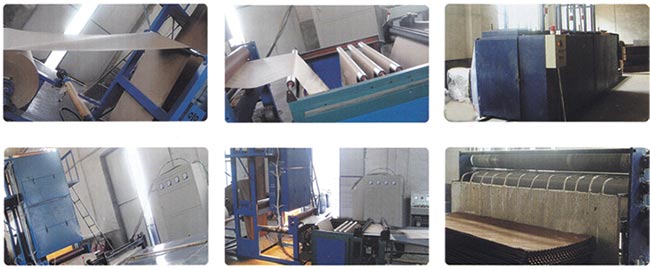

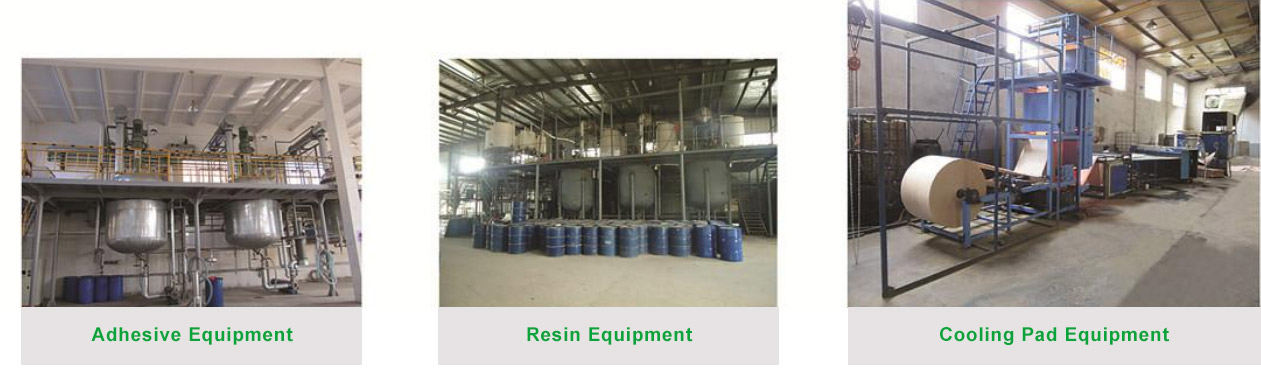

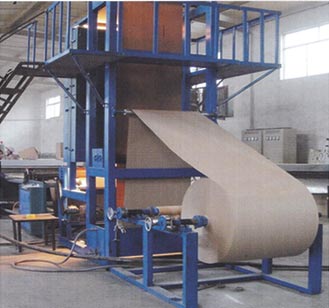

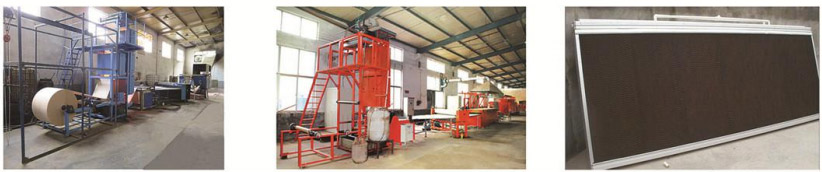

Production Scene

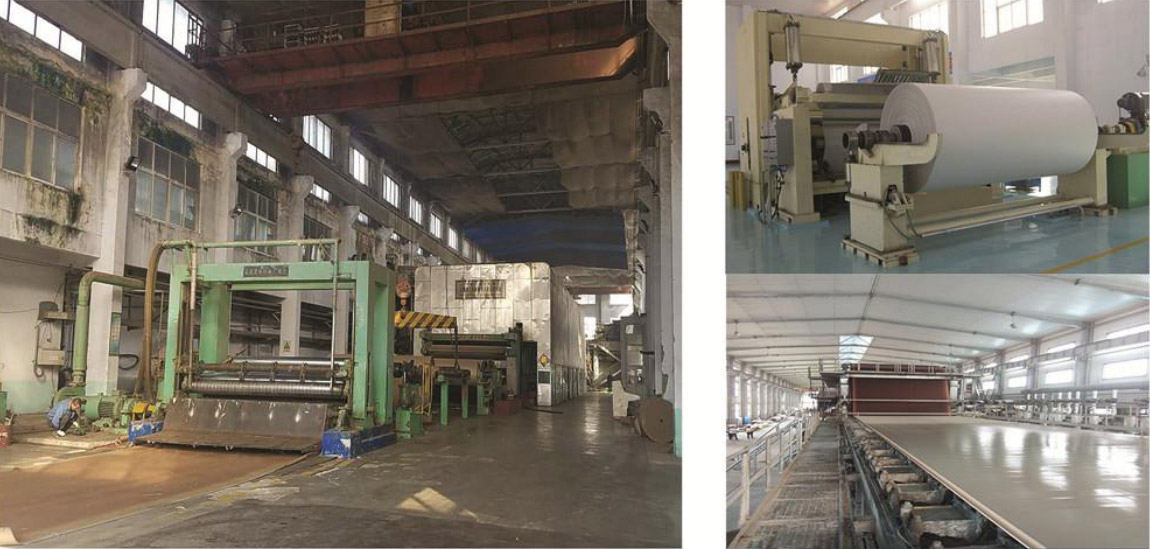

Kraft Paper Equipment

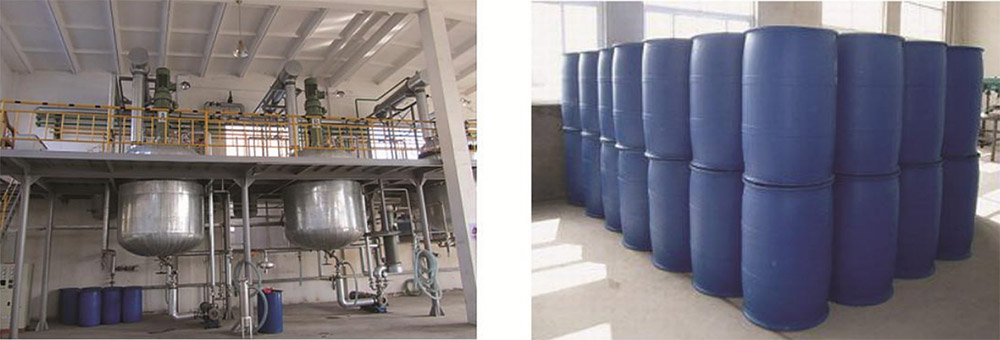

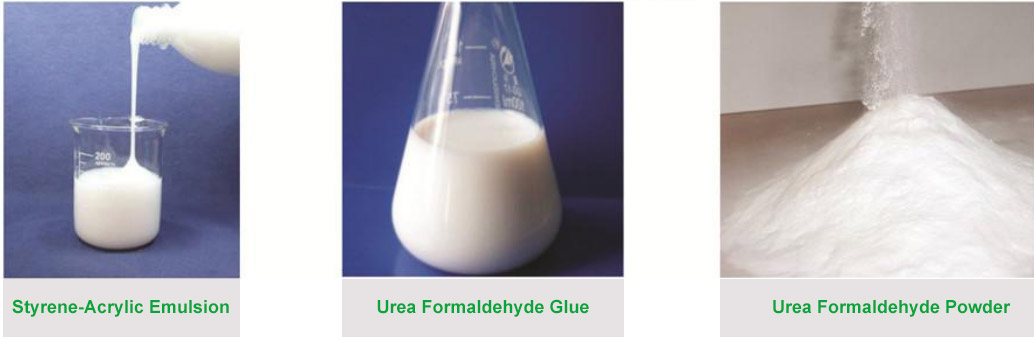

Cooling Pad White Glue
According to the application characteristics of cooling pad, using emulsion polymerization and interpenetrating network technol-.ogy , which make the water resistance, adhesion strength and temperature resistance of the product can be improved obviously. Witha smal particle size, weather resistance, water resistance, pollution resistance and other characteristics, mainly used in cooling papeladhesive production,etc )
Technical Parameter
| No. | Product Name | CuringTemperature | Solid content | Golden Proportion Glue:Water) | Viscosity(CPS ) | Shelf Life(Months) |
| 1 | Styrene-AcrylicEmulsion | 150 | 36 | Directly use | 4000-5000 | 12 |
| 2 | Urea Formaldehyd eGlue | 150 | 36 | Directly use | 200-300 | 3 |
| 3 | Formaldehyde Powder | 100 | / | 1:1 | / | 12 |

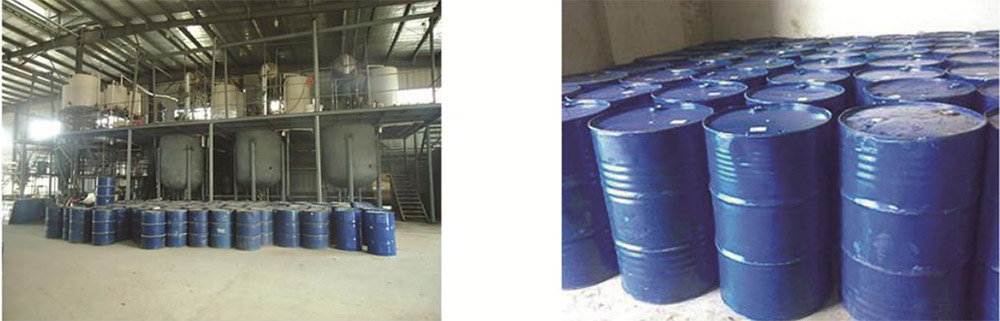

Cooling Pad Red Resin Glue
Phenolic Resin Adhesive
The phenolic resin adhesive is a red-brown liquid, which is formed bypolymerization of phenol, formaldehyde and auxiliary materials at hightemperature.
It has good chemical stability and high viscosity and elasticity. At thesame time, because of its good stability and mobility, it has goodworking performance and workability.Has excellent aging resistance, water resistance, acid resistanceand wrinkle resistance, this adhesive in use, non-toxic, does notcontain heavy metals, no pollution, harmless to skin.
Technical Parameter
| No. | Product Name | CuringTemperature | Solid content | Golden Proportion Glue:Water) | Viscosity(CPS ) | Shelf Life(Months) |
| 1 | Red Resin-1 | 150 | 53 | 1:3 | 25-30 | Need refrigeration |
| 2 | Red Resin-2 | 150 | 27 | 1:1 | 13-15 | 3~6 |
Cooling Pad Red Resin Glue

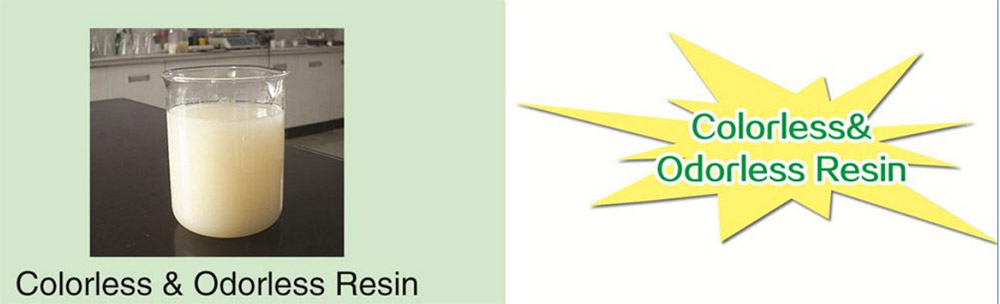

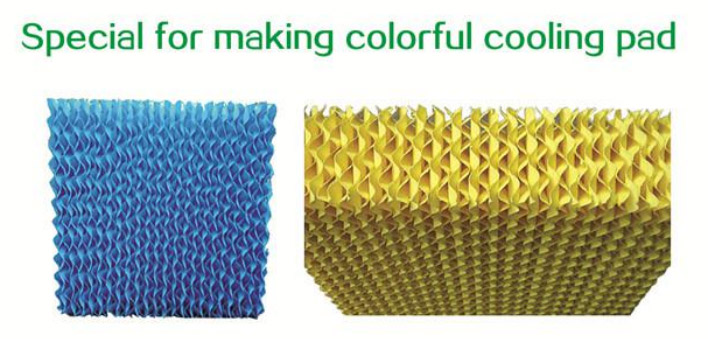

On the basis of the red resin, our companyhas independently developed a colorless andodorless resin. This product is more suitablefor the production process of color cooling pad,and longer Storage time , no need refrigeration,more convenient transportation.
Technical Parameter
| No. | Product Name | CuringTemperature | Solid content | Golden Proportion Glue:Water) | Viscosity(CPS ) | Shelf Life(Months) |
| 1 | Colorless&Odorless Resin | 150 | 52 | 1:3 | 15-20 | 3~6 |

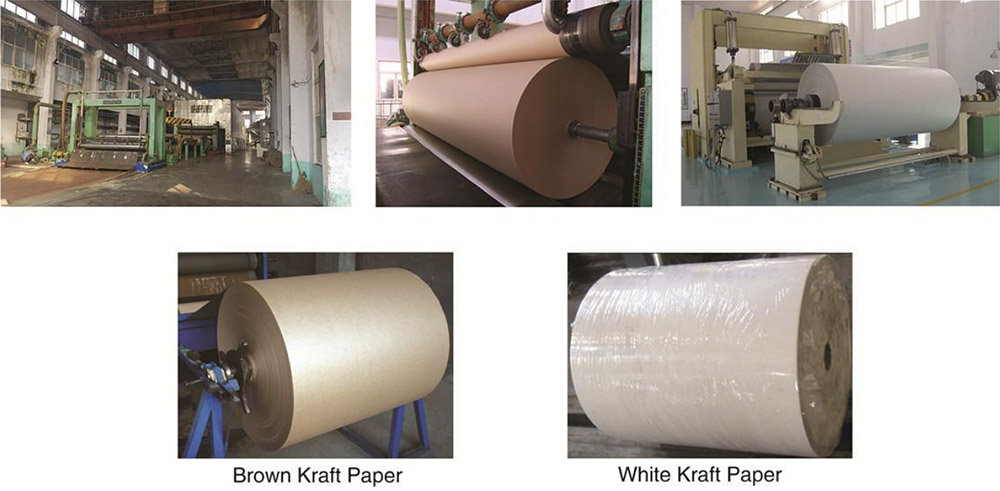

Cooling Pad Kraft Paper
Cooling Pad Kraft Paper(Pure wood pulp)
☆Strong water absorption
☆Quick water absorption
☆Long term on the water will not reduce the paper strength,the paperwill not rot, and no deformation after drying.
Technical Parameter
| No. | Product Name | CuringTemperature | Solid content | Golden Proportion Glue:Water) | Viscosity(CPS ) | Shelf Life(Months) |
| 1 | Brown Kraft Paper | 95/105 | 740/1100 | ≤ 0.52 | ≥22 | ≥50 |
| 2 | White Kraft Paper | 95 | 740/1100 | ≤ 0.52 | ≥22 | ≥50 |

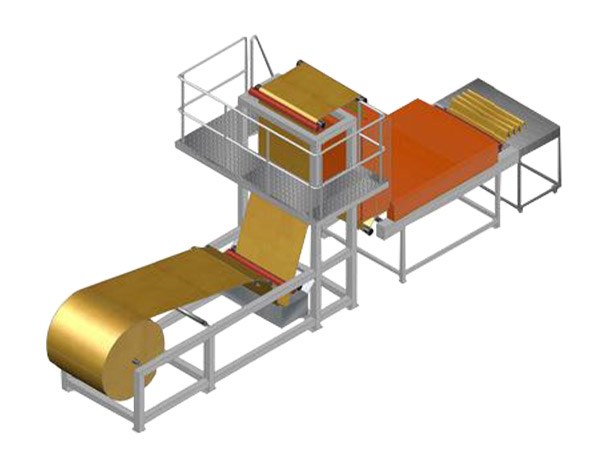

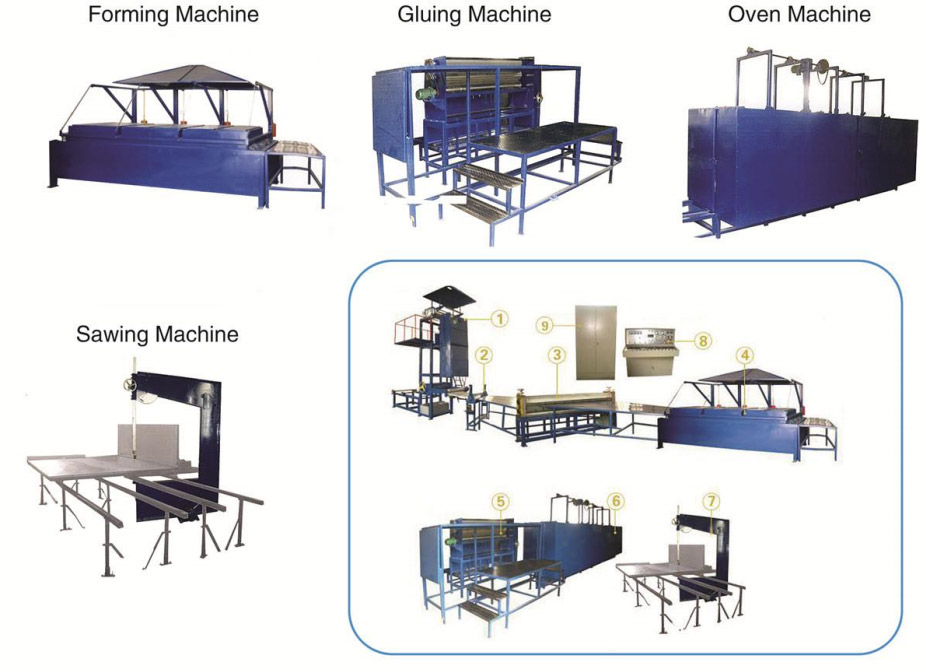

Cooling Pad Production Line Machine
Our production line machines are high quality with very lowenergy.
The service life can be up to 15 years.
We provide automatic cooling pad production line machineswith complete consultancy, training and Installation services.☆Reasonable structure,runing stable,high effciency.
☆8 bigital controlled,temperature the same,heating efficiencyincreases,lower consumption of electricity,the product hasthesame color.
☆Adopted circulation inside more phases heatingoven,temperature rises quickly,high efficiency,lower the dryingcost.
☆Widen the gluing machine,raise the working efficiency,lowerthe working hardness.
☆Guangyu heater adopts two layers of heatpreservation,lower the heat losses efficiency.Increase theefficienty,lower the cost.
☆Professional machine,quality assured,price reasonable.

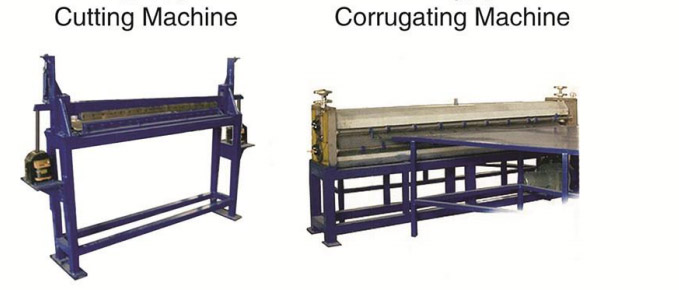

| No. | Machine Name | Voltage (V) | Power(KW) | Frequency(HZ) |
| 1 | Resin Machine | 380 | 120/144 | 50 |
| 2 | Cutting Machine | 380 | 0.5 | 50 |
| 3 | Corrugating Machine | 380 | 30 | 50 |
| 4 | Forming Machine(Optional) | 380 | 65 | 50 |
| 5 | Gluing Machine | 380 | 3 | 50 |
| 6 | Oven | 380 | 80 | 50 |
| 7 | Sawing Machine | 380 | 3 | 50 |

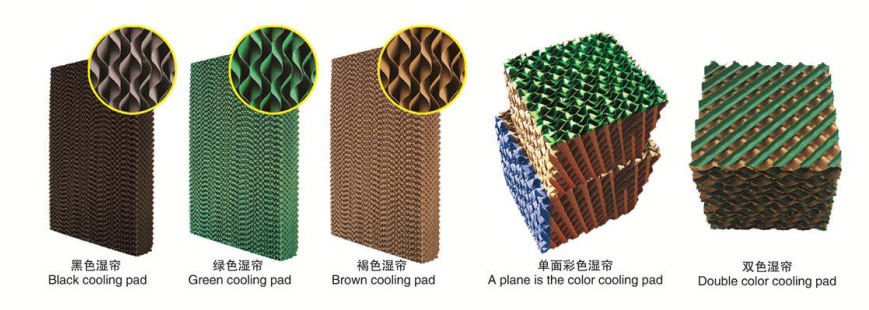

Colorful Cooling Pad
Characteristic
Guangyu Evaporative cooling pad Features
☆Corrugated paper with the spatial crossing linking technology, high absorbability, high water resistant,anti-mildew and long service life.
☆ Large evaporation area, cooling efficiency as high as 80%.
☆The product absorbs water naturally,which fast speed of pervasion and lasting effectiveness.One dropof water can diffuse within 4-5 seconds.The natural absorption height is 60-70mm/5mins,as 200mm/1.5hours,having reached international standard.
☆ The product does not contain phenol which is iritant to the skin and the like chemical products. it is safeenergy saving,environmental protective, economic and durable.
☆Galvanized sheet and aluminum panel optional.

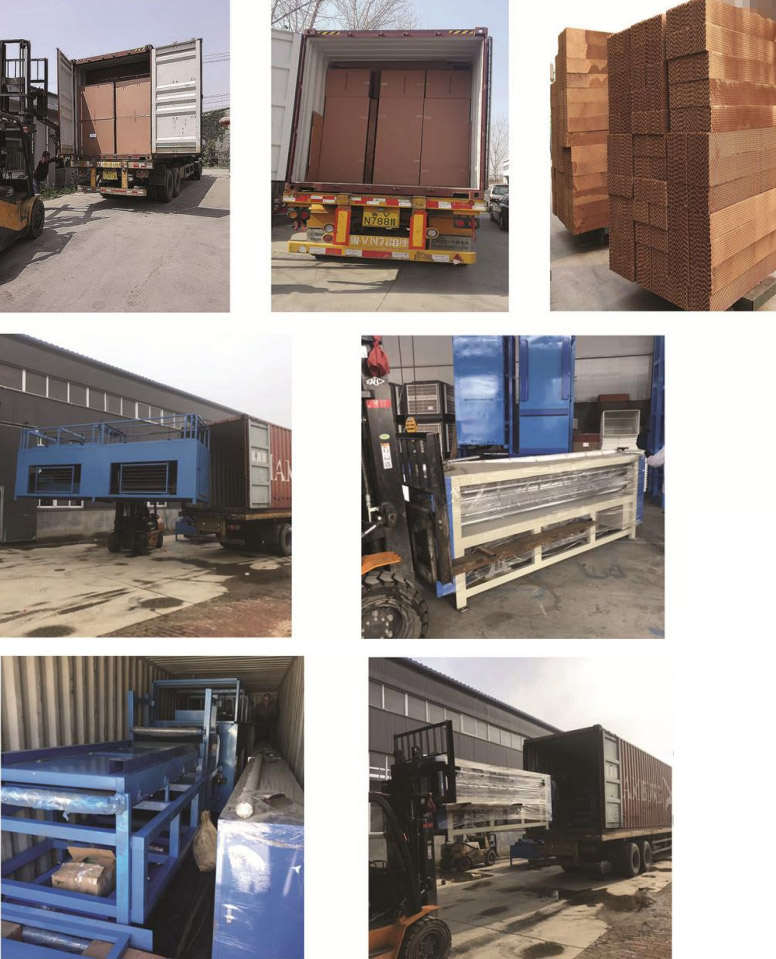

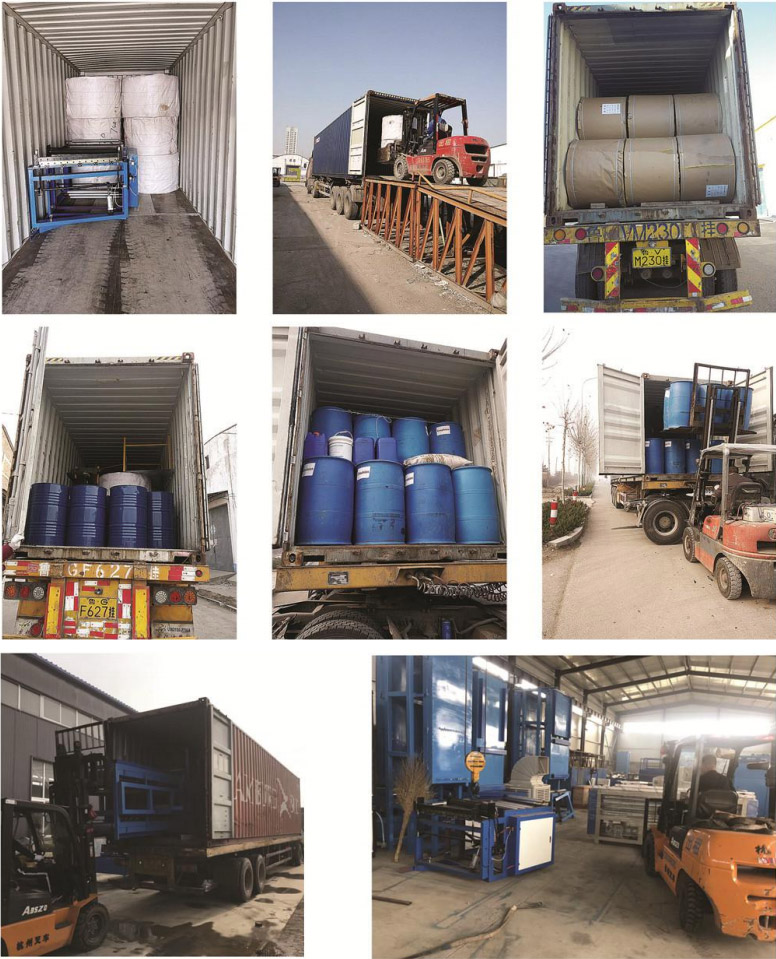

Package and delivery
